Przepiekny zestaw stereo PIONEER wzmacniacz Pioneer SA-606 Tuner FM/AM Pioneer TX-606 oraz magnetofon deck kasetowy CT-606 Vintage Made in Japan!!!

Pioneer SA-606

Stereo Integrated Amplifier (1978-79)

Description

The Pioneer SA-606 is a stereo integrated amplifier giving a continuous power output of 40 watts per channel.

The unit has discrete power supply sections for the class A and class B sections, and a current-mirror loaded differential amplifier with constant current loaded Darlington connected all-stage direct-coupled OCL output.

Other features include outputs for two sets of speakers, click stop tone controls, loudness contour, separate watts meters with LED peak indicators for each channel, and advanced electronic protection.

Specifications

Power output: 40 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 40kHz

Total harmonic distortion: 0.05%

Damping factor: 30

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 78dB (MM), 95dB (line)

Output: 150mV (line)

Semiconductors: 2 x IC, 25 x transistors, 27 x diodes

Dimensions: 450 x 148 x 263mm

Weight: 8.2kg

Year: 1978

Pioneer TX-606

AM/FM Stereo Tuner (1978-79)

Specifications

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

Output: 650mV

Dimensions: 420 x 147 x 264mm

Weight: 4.6kg

Year: 1978

Pioneer CT-606

Stereo Cassette Tape Deck (1978-79)

Specifications

Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.75 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: electronically controlled DC

Tape Type: type I, FeCr, CrO2

Noise Reduction: B

Frequency Response: 40Hz to 15kHz  (Cr02 tape)

Signal to Noise Ratio: 64dB  (dolby B)

Wow and Flutter: 0.06%

Input: 50mV (line), 0.2mV (mic)

Output: 0.7V (line)

Dimensions: 420 x 151 x 323.5mm

Weight: 7.5kg

Year: 1978

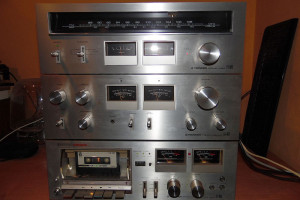

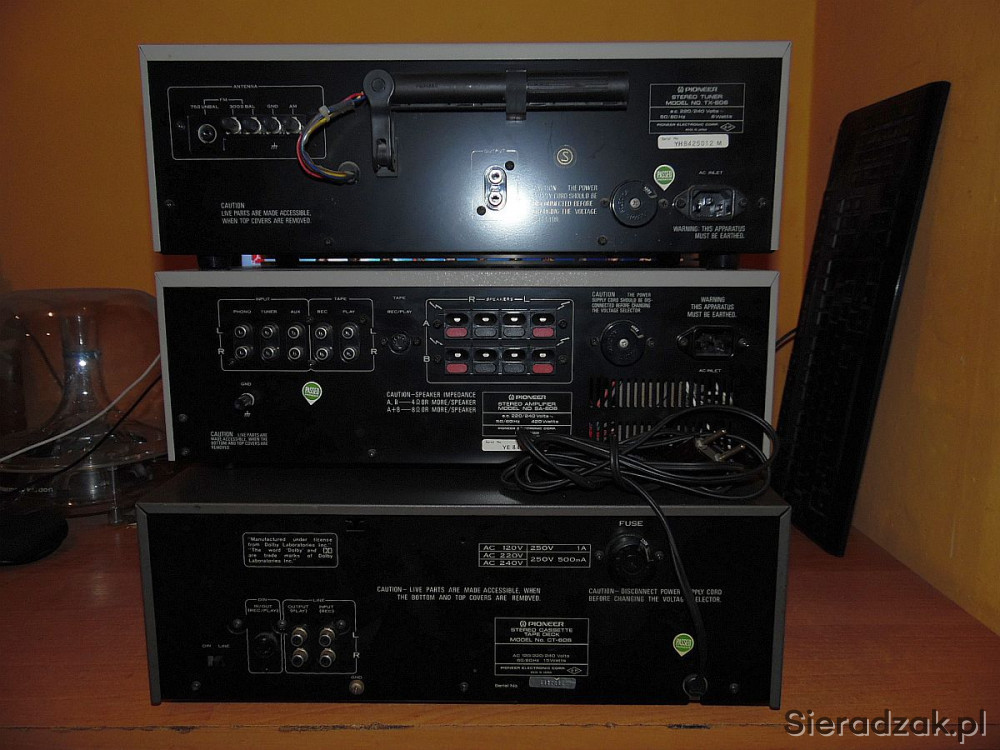

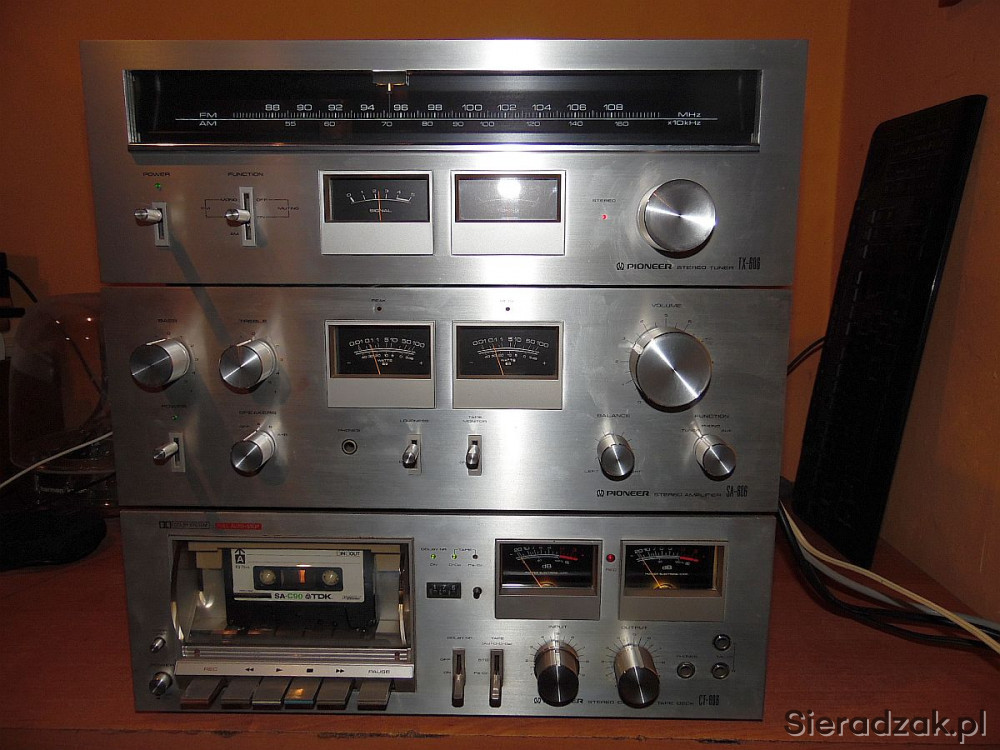

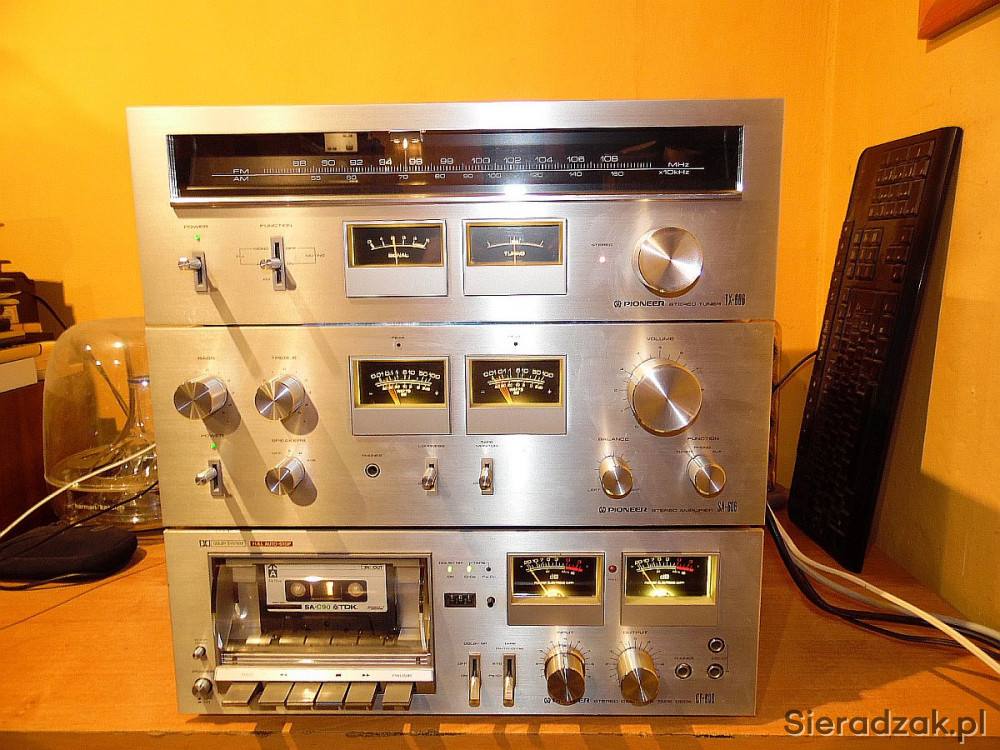

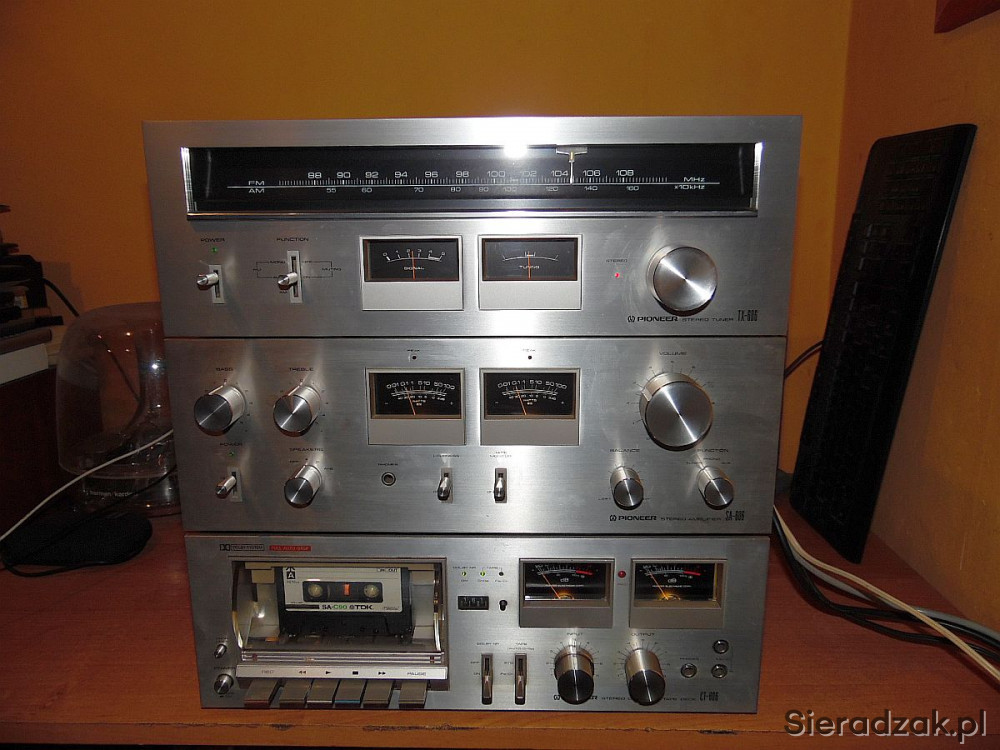

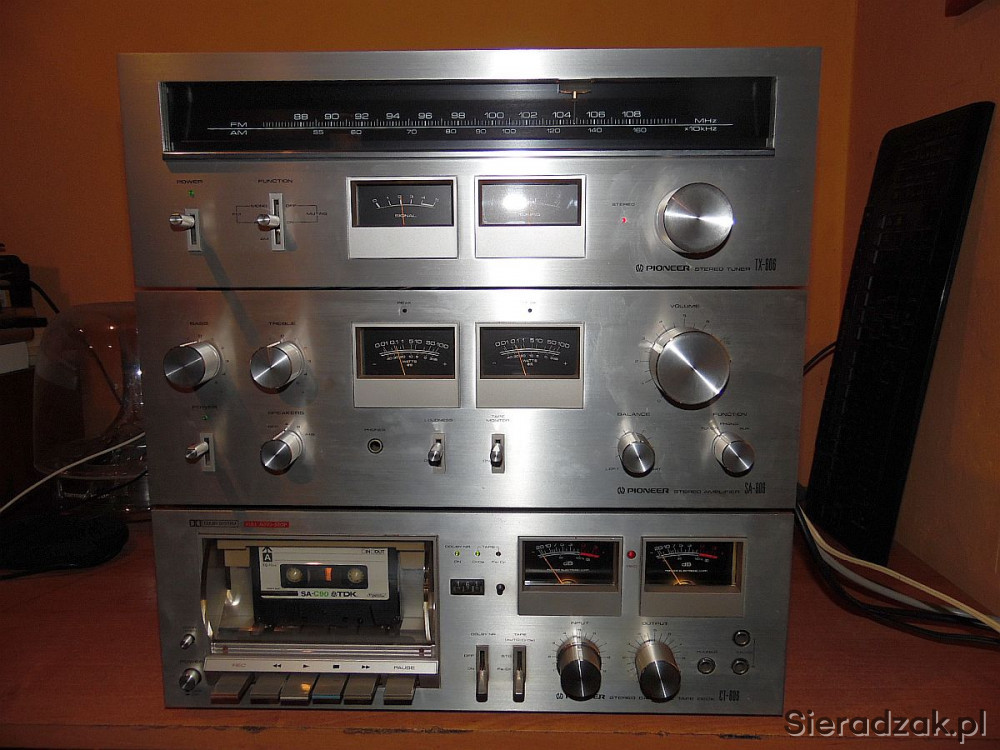

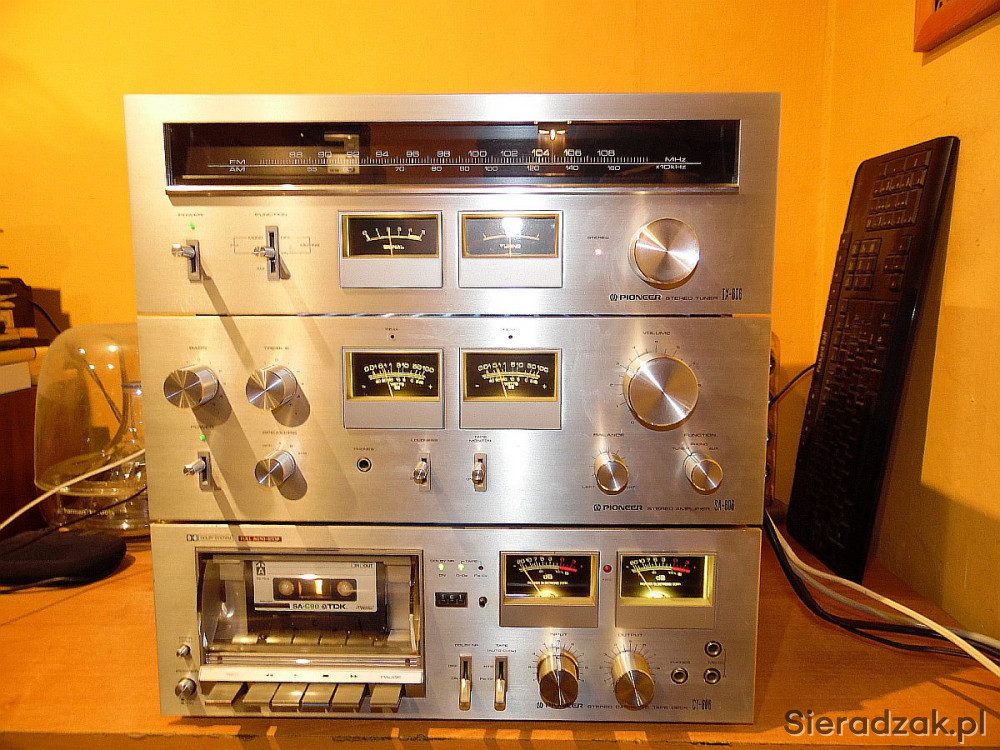

Sprzęt w stanie jak na foto. Przepiękny wzmacniacz wyposażony w przedwzmacniacz gramofonowy, jak w wychyły - mega urok i klimat tuner z piekną analogową skalą dopełnia ten urok. Magnetofon wymaga serwisu gra odtwarza ale coraz ciężej mu przewijać i jeden wychył czasem idzie na maksa. Polecam.

Możliwość sprzedaży wraz z gramofonem kolumnami odtwarzaczem CD.

Zapraszam do kupna.
